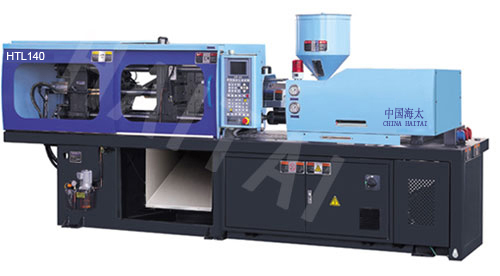

HTL140
來源： 日期：2013/5/29 16:44:58 人氣：64 標簽：
| 規格 | SPECIFICATION | | HTL140 |
| | | | A | B | C |
| 注射裝置 | INJECTION UNIT | | | | |
| 螺桿直徑 | Screw diameter | mm | 38 | 42 | 45 |
| 螺桿長徑比 | Screw L/D ratio | L/D | 22.1 | 20 | 18.6 |
| 理論注射容量 | Shot volume(theoretical) | cm3 | 193 | 235 | 270 |
| 注射重量 | Injiection weight(ps) | g | 176 | 213 | 246 |
| 注射速率 | Injection rate | g/s | 94 | 115 | 132 |
| 注射壓力 | Injection pressure | Mpa | 205 | 170 | 147 |
| 螺桿轉速 | Screw pressure | rpm | 190 |
| 鎖模裝置 | CLANPING UNIT | | |
| 鎖模力 | Clamping force | kN | 1400 |
| 移模行程 | Open stroke | mm | 380 |
| 拉桿間距(寬*高) | Space between tie bars(W×H) | mm | 410×410 |
| 最大模厚 | Max.Mold height | mm | 450 |
| 最小模厚 | Min.Mold height | mm | 160 |
| 頂出行程 | Ejector stroke | mm | 120 |
| 頂出力 | Ejector force | kN | 50 |
| 其他 | OTHERS | | |
| 最大油泵壓力 | Max.Pump pressure | MPa | 16 |
| 電機功率 | Pump motor power | kW | 13 |
| 電熱功率 | Heating power | kW | 7.9 |
| 外形尺寸（長*寬*高） | Machine dimension(L×W×H) | m | 4.48×1.11×1.9 |
| 油箱容積 | Oiltank cubage | L | 230 |
| 機器重量 | Machine weight | t | 0 |
| | | | | | |

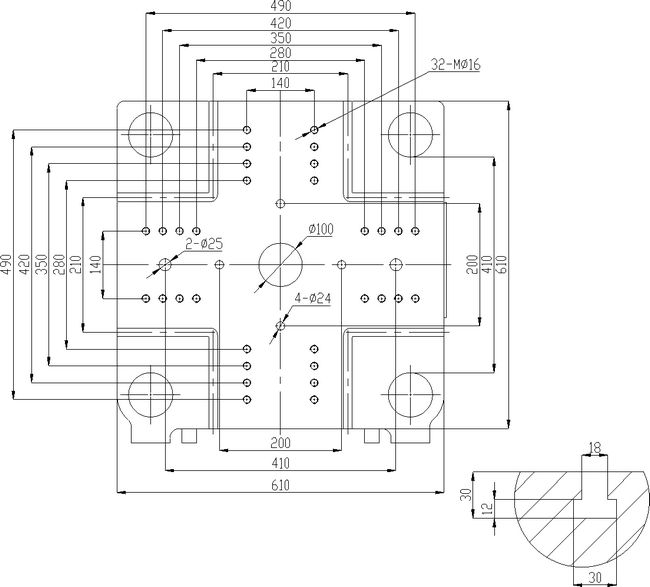

模板正面尺寸 PLATEN DIMENSIONS
|  |

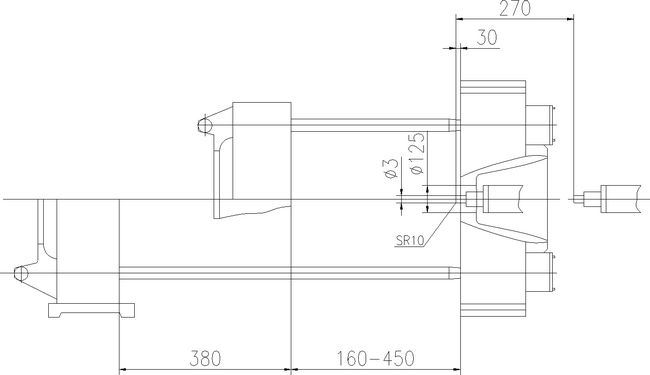

模板側面尺寸 MOULD SPACE DIMENSOINS
|  |
